If you are transitioning from hand-placing prototypes to automated in-house PCB assembly, you have likely come across the NeoDen YY1. It is one of the most popular entry-level desktop pick and place machines on the market today.
But is it the right machine for your specific engineering needs? Or should you consider an OpenPnP-based alternative like the AFARCO PNP V3.2?
In this post, we’ll take an objective look at the NeoDen YY1, its strengths, its limitations, and how it compares to a heavy-duty, CNC-machined OpenPnP platform.
The NeoDen YY1: A Quick Overview The NeoDen YY1 is designed as a turnkey solution for makers and small lab environments.
What it does well:
All-in-One Convenience: It features a built-in touch screen and runs on a proprietary embedded operating system, making it relatively easy to start without an external PC.
Compact Footprint: It fits easily on a standard workbench.
Automatic Nozzle Changer: A nice feature for a desktop unit, allowing it to swap between a few nozzle types automatically.
The Limitations (According to User Feedback):
While the YY1 is a great entry point, professional hardware engineers often run into a few bottlenecks:
Proprietary Software Lock-in: You are restricted to NeoDen’s embedded system. If you want to integrate custom vision scripts, tweak specific machine behaviors, or connect to your own ERP/BOM software, you are out of luck.
Feeder Fiddliness: The YY1 uses a simplified friction-peeler mechanism for its tape feeders. While cost-effective, users often report needing to manually tweak friction rings and "warm up" the peelers, especially with 8mm plastic tapes, to prevent mis-feeds.
Build Rigidity: To keep costs and shipping weight low, many mass-market desktop machines rely heavily on sheet metal and plastic components. Over time, high-speed lateral movements can introduce micro-vibrations, subtly affecting placement accuracy (±0.02mm claimed, but real-world results may vary).

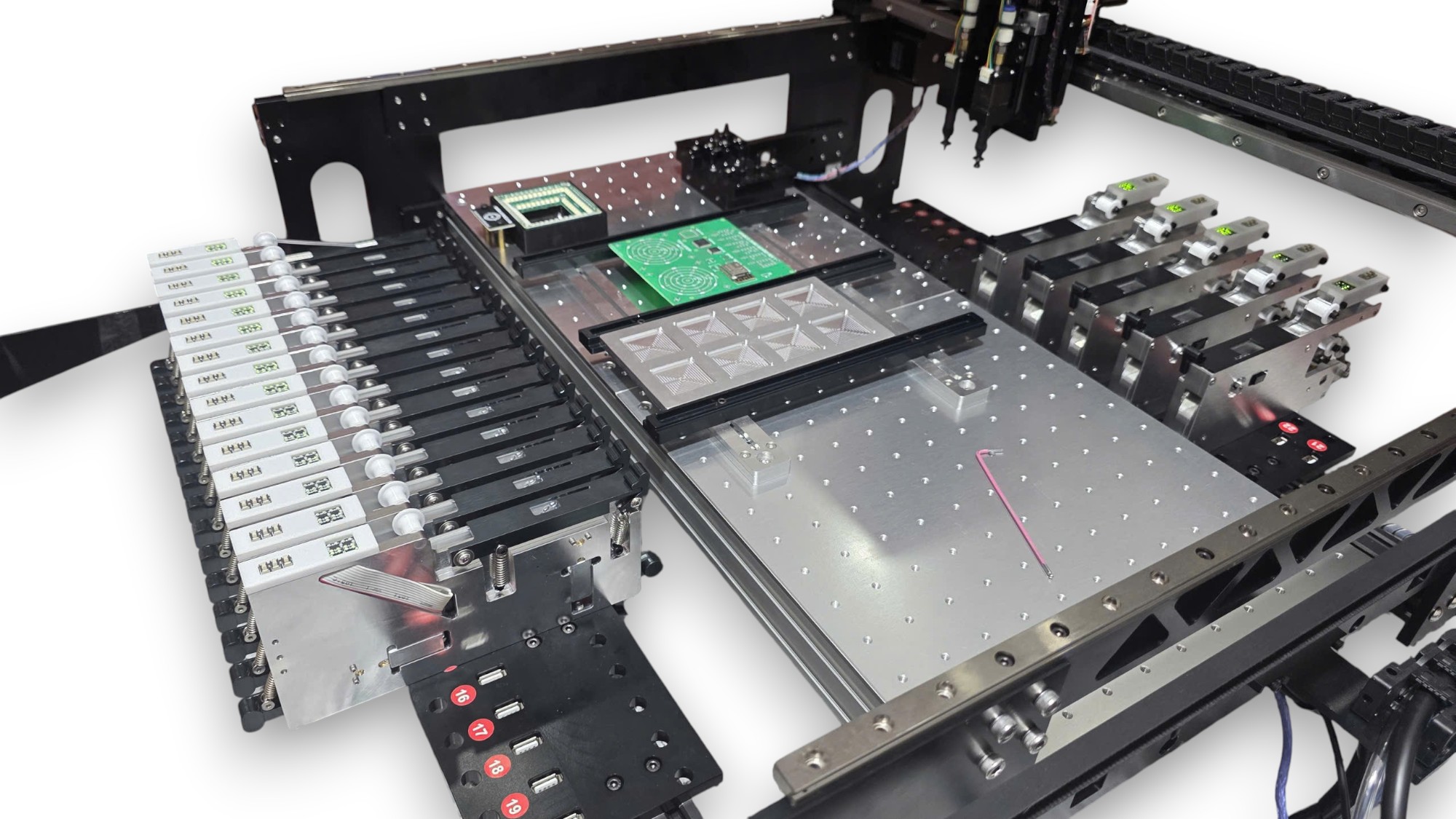

The Engineer's Alternative: AFARCO PNP V3.2 If you are an engineer who prioritizes structural rigidity, maximum feeder capacity, and total software control, the AFARCO PNP V3.2 was engineered specifically for you.
Instead of building a closed-box appliance, AFARCO took an industrial approach to the desktop SMT category. Here is how it directly solves the common pain points of entry-level machines:
- Zero 3D-Printed Parts. 100% CNC 6061 Aluminum. Unlike machines that use sheet metal or 3D-printed brackets, the AFARCO V3.2’s entire frame and gantry are precision-machined from solid 6061 Aluminum.
Why it matters: Mass and rigidity equal accuracy. The heavy CNC construction absorbs high-speed gantry vibrations, ensuring that your 0201 placements remain dead-on accurate, hour after hour, without chassis flex.
- The Power of OpenPnP The AFARCO V3.2 completely abandons proprietary operating systems in favor of OpenPnP, running on a high-stability, standalone Ubuntu environment.
Total Control: You have full access to the machine's brain. Want to write a custom script for an odd-form component? Need to adjust the computer vision lighting parameters down to the pixel? You can.
Future-Proof: You aren't waiting on a manufacturer's firmware update. The global OpenPnP community is constantly pushing the boundaries of what these machines can do.
- Massive 40-Slot Feeder Capacity
The YY1 has a fixed feeder setup. The AFARCO V3.2 boasts up to 40 feeder slots, giving you the flexibility to load up complex BOMs without constantly swapping out reels. Coupled with a dual-head design using industry-standard Samsung CP45-type nozzles, it delivers a realistic placement rate of 1,600 – 2,200 CPH.
Head-to-Head Comparison
Feature NeoDen YY1 AFARCO PNP V3.2
Target Audience Hobbyists, Entry-level Makers Hardware Engineers, Small-Batch Prototyping Labs
Chassis Material Sheet Metal & Plastic Full CNC 6061 Aluminum
Software Proprietary Embedded GUI OpenPnP (Fully Customizable)
Feeder Capacity ~45 (Mixed, fixed layout) 40 Slots (Highly modular)
Max PCB Size 250 x 279 mm 280 x 550 mm (Standard)
Vacuum System Internal External -85Kpa Industrial Pump
The Verdict: Which Should You Buy? If you want an appliance-like experience and don't mind proprietary software, the NeoDen YY1 is a capable starter machine.
However, if you view your Pick and Place machine as a long-term piece of industrial equipment—if you want the rigidity of CNC-machined aluminum, the immense flexibility of OpenPnP, and the ability to repair, upgrade, and modify your machine—the AFARCO PNP V3.2 is the clear choice.
Stop fighting with proprietary limitations and fiddly friction peelers. Invest in an open platform built like a tank.
👉 Discover the full technical specifications of the AFARCO PNP V3.2 here and see the CNC difference for yourself.
Frequently Asked Questions (FAQ) Q1: Can I install OpenPnP on the NeoDen YY1? A: No, the NeoDen YY1 operates on a closed, proprietary embedded operating system. It does not support third-party software. If you require the flexibility, custom computer vision scripts, and advanced community features of OpenPnP, you will need a purpose-built open platform like the AFARCO PNP V3.2.
Q2: Are there any 3D-printed parts on the AFARCO PNP V3.2? A: Absolutely not. Many entry-level or DIY desktop PnP machines use 3D-printed brackets that warp under heat or vibrate at high speeds. The AFARCO V3.2 is constructed entirely from precision-machined CNC 6061 aluminum, guaranteeing industrial-grade rigidity and long-term placement accuracy (± 0.05 mm).
Q3: How does the feeder capacity of the AFARCO V3.2 compare to entry-level machines? A: The AFARCO V3.2 supports up to 40 highly modular feeder slots (8mm equivalent). While machines like the YY1 have a fixed built-in feeder assembly, the AFARCO platform allows you to scale and arrange your feeders to perfectly match complex BOMs (Bill of Materials) without constantly swapping reels.
Q4: What computer setup do I need to run the AFARCO V3.2? A: The machine runs on OpenPnP and is highly optimized for a standalone Ubuntu Linux environment to ensure maximum stability without background OS interruptions. AFARCO provides pre-configured profiles and sample configurations, so you can get your assembly line running quickly.
Q5: Can desktop machines like the AFARCO V3.2 handle 0201 components? A: Yes. High-precision placement relies on two things: camera resolution and frame rigidity. Thanks to its Dual HD Vision system (top and bottom cameras) and zero-flex CNC aluminum gantry, the AFARCO V3.2 reliably places components as small as 0201, as well as fine-pitch ICs and BGAs.
Ready to experience OpenPnP 2.6 on your AFARCO machine? Contact us today for the optimal configuration guide!
